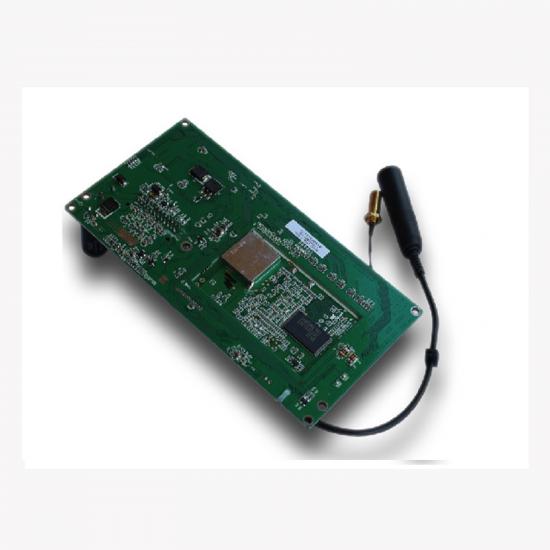

Consumer Electronics PCB Assembly
- PCB Layer: 2 L
- Thickness: 1.2mm
- PCB Size: 100*50mm
- Min Size: 1206
- Min Pitch: 0.3mm
-
Application: Consumer Electronics
| Item | Speci. |
| PCB SMT Min thickness | T＜0.1mm |
| PCB SMT Max thickness | T＞4.5mm |
| PCB SMT Min Length | L≥3mm, |
| PCB SMT Min Width | W≥3mm |
| PCB SMT Max Length | L ＞ 1200mm |
| PCB SMT Max Width | W＞ 500mm |
| Min panel size | 0.3mm*0.2mm |
| Max panel size | 200mm*125mm＜SMD |
| component thickness | 6.5mm＜T≤15mm |
| Min pin space | 0.3mm≤Pitch＜0.4mm |
| Min ball space | 0.3mm≤Pitch＜0.5mm |
| PCB DIP Min thickness | T＜0.8mm |
| PCB DIP Max thickness | T＞2mm |
| PCB DIP Min Length | L≥50mm |
| PCB DIP Min Width | W≥30mm |
| PCB DIP Max Length | L≥1200mm |
| PCB DIP Max Width | W≥500mm |
| Inter package | Vacuum/ Antistatic Bag |
| Outer package | Carton |
| SMT capacity | Four Million point/day |
PCB Manufacturing Services
As one of the leading Printed Circuit Board manufacturers based in China, Ucreate has been offering international companies of all sizes with high-quality PCB prototype to production services at a fair price for eight years. To make professional and advanced circuit boards, we’re committed to adhering to the strictest standards during the PCB manufacturing process. We’re fully compliant with the ISO 9001:2008 quality management system.
– Save money&time! Achieve peace of mind!
– A professional and trustworthy PCB Prototype manufacturer.
– Fastest PCB Prototype.
– One-stop solution for various PCB& SMT Stencil.
– Low cost for simple PCB.
– Affordable price for high-tech PCB.
– Minimum orders 1pcs.
– 24-hour online customer service.
– Professional PCB engineer for one-to-one service.
– Shipment on time.
– Guarantee good service and quality from PCB quotation to delivery.
PCB Assembly Services
To deliver real value and convenience to our PCB fabrication clients, we expand our business to components sourcing and turnkey PCB assembly services ranging from the prototype, low-to-middle volume to high volume up to 1 million pcs. We can mount components on circuit boards using surface mount technology (SMT),through-hole technology (THT), and manual insertion:
– High-quality assembly services with short lead times
– No minimum order
– No additional charge for stencils
– Free DFM Check
– 100% AOI test and X-Ray test for BGAs package
– Function tests & IC programming based on custom requirements
All boards are produced according to IPC-6012 standards and inspected according to IPC-A-600 in the latest version. Our products are widely applied in communications, industrial control, power electronics, medical equipment, security electronics, consumer electronics, LED, etc. More than 90 percent of them were exported to Europe, North America, South America.
Deliver Time For PCB & PCBA
- PCB production time: sample: 3-4 days / production: within 7 days
- Fast pcb delivery: 24 hours for 2L ; 48 hours for 4L ; 72 hours for 6L.
- Component purchase: 2 days if all components is available in our domestic market.
- PCB Assembly: samples: within 8 days / mass production: within 12 days
| LAYER | PROTOTYPE | MASS PRODUCTION (above 20 m2) | |
| Quick Turn | Standard Time | ||
| MC PCB | 48 hours | 4-5 days | 10-12 days |
| PFC 1 L | 48 hours | 5-6 days | 12-13 days |
| 1L | 24 hours | 3-4 days | 8-10 days |
| 2L | 24 hours | 3-4 days | 8-10 days |
| 4L | 48 hours | 5-6 days | 8-10 days |
| 6L | 72 hours | 6-7 days | 10-12 days |
| 8L | 72 hours | 7-8 days | 12-14 days |
| 10L | 96 hours | 9-10days | 16-18 days |
One-stop Service Include
| PCB Prototype | Quick Turn PCB | Single-Sided PCB |
| Double-Sided PCB | Multilayer PCB | Rigid PCB |
| Flexible PCB | Rigid-Flex PCB | LED PCB |
| Aluminum PCB | Metal Core PCB | Thick Copper PCB |
| HDI PCB | BGA PCB | High TG PCB |
| PCB Stencil | Impedance Control PCB | PCB Assembly |
| High-Frequency PCB | Bluetooth Circuit Board | Automotive PCB |
| USB Circuit Board | Halogen-Free PCB | Antenna PCB |
